CPD-30 Electric Forklift – 3 Ton

Powerful · Efficient · Reliable

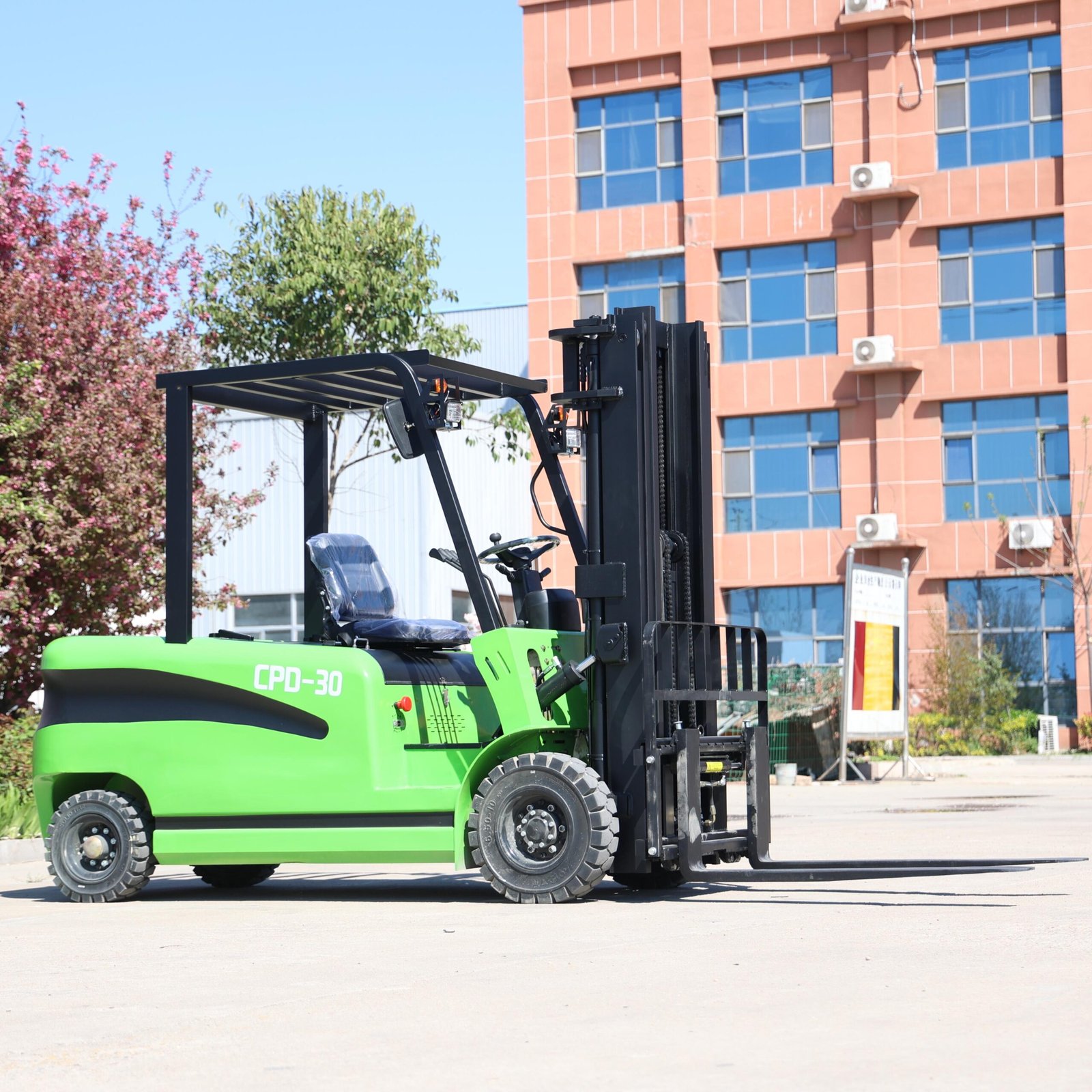

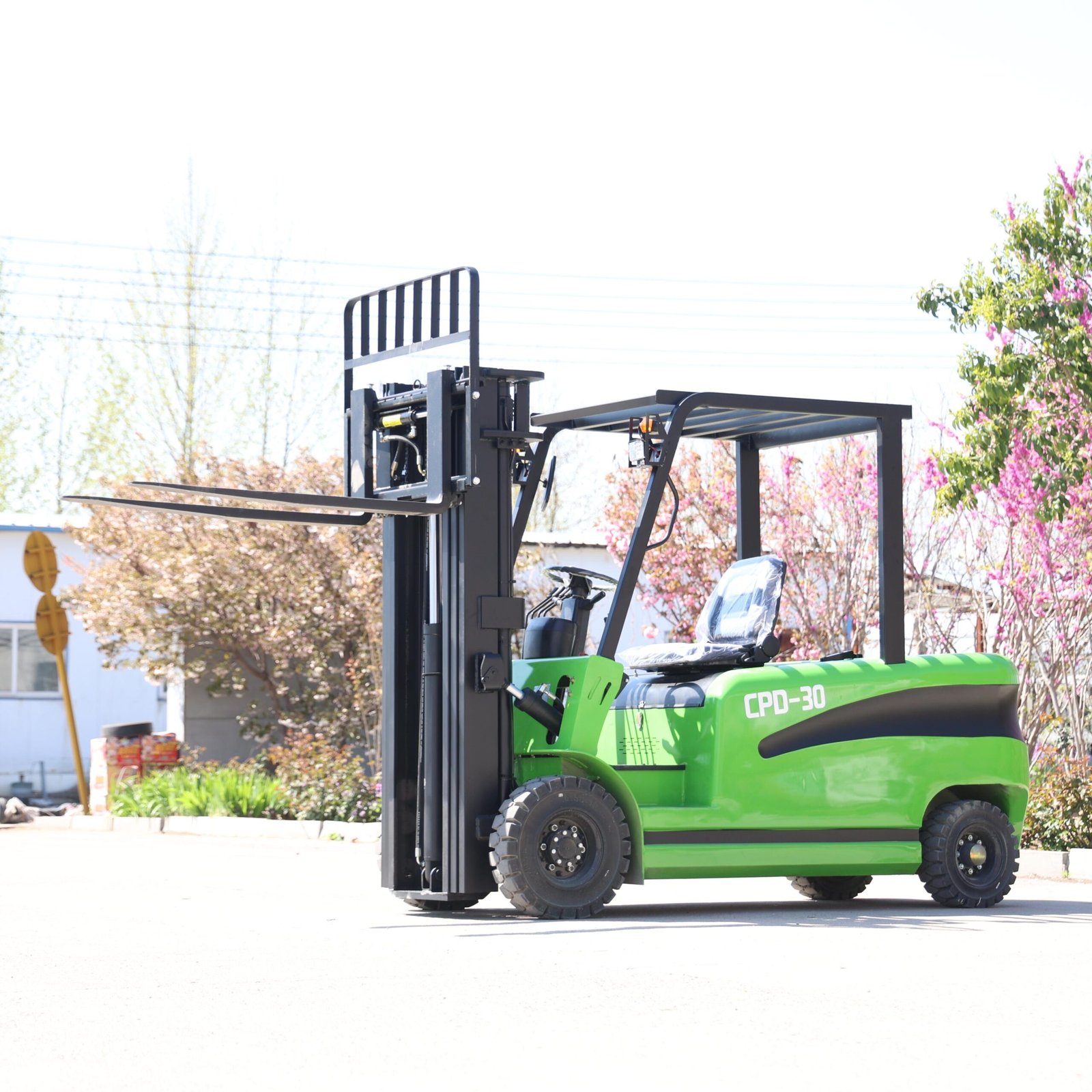

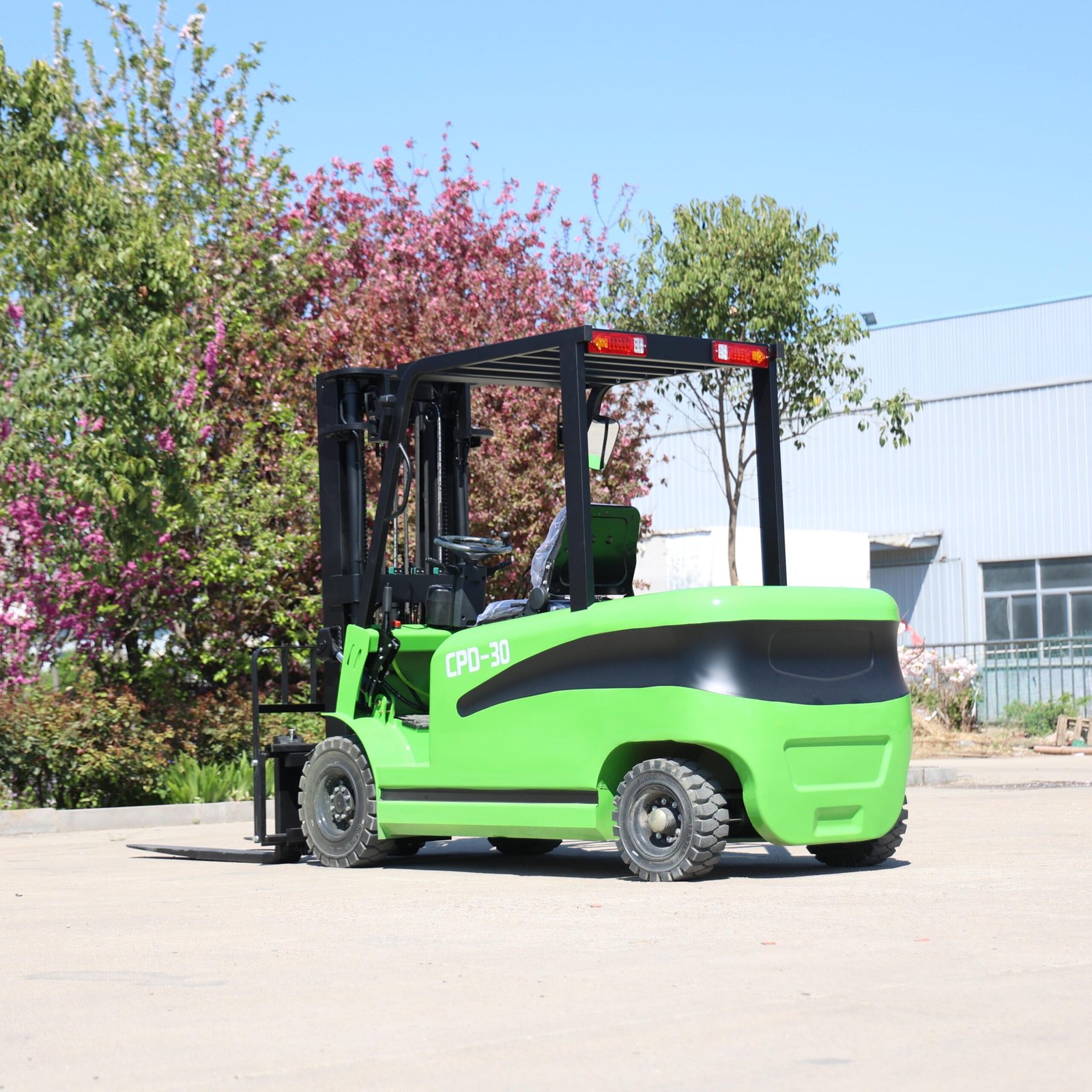

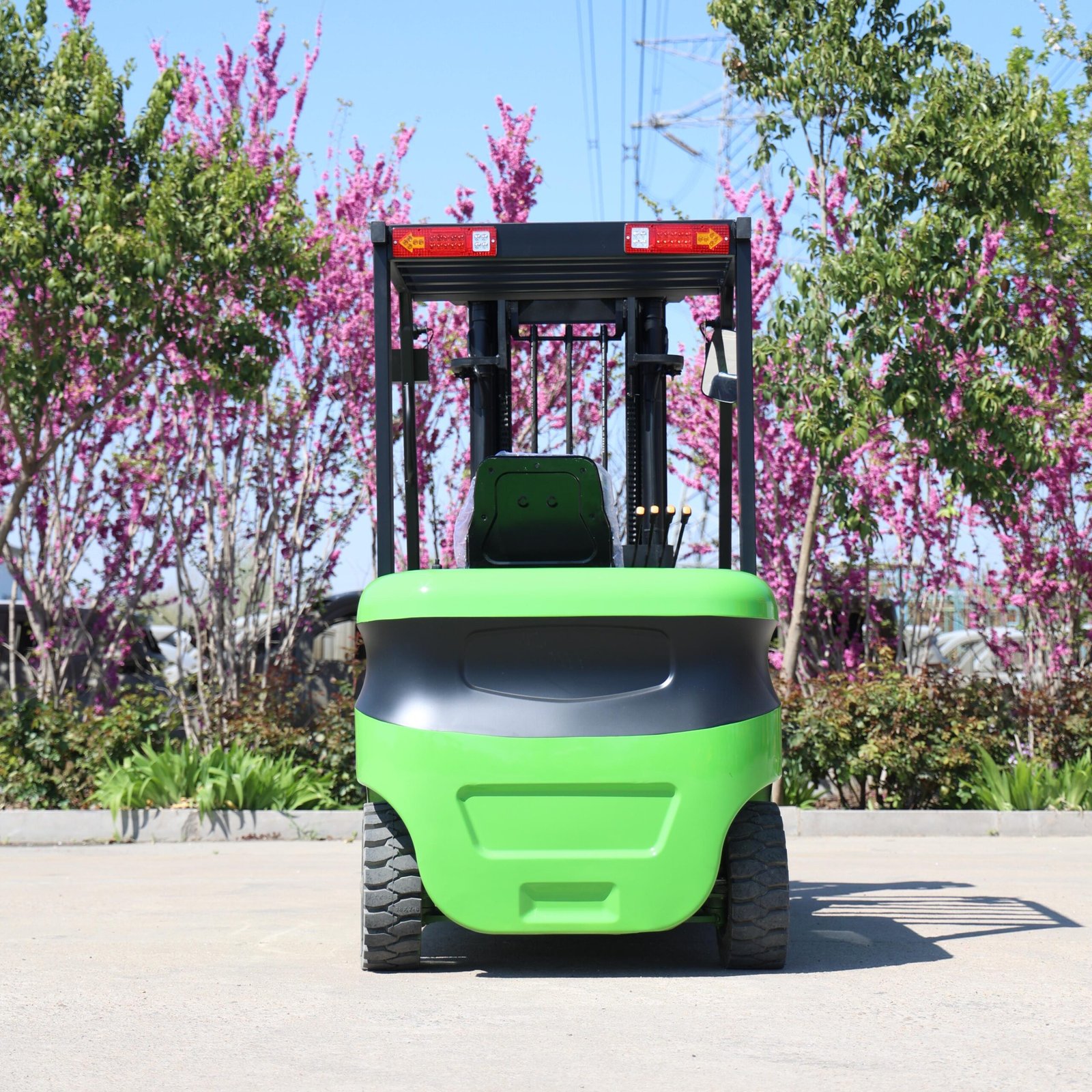

The MIWO CPD-30 3 Ton Electric Forklift is designed for heavier material handling in manufacturing plants, warehouses, distribution centers, and logistics facilities. With a reinforced mast, high-strength steel structure, and electric drive system, it supports regular lifting and transportation of heavy palletized loads in suitable industrial environments.

Key Features

1. Comfortable Operation
The operator-focused control layout supports convenient daily operation and efficient material handling.

2. Sturdy Tires
Industrial solid tires help resist wear and reduce puncture-related interruptions on suitable working surfaces.

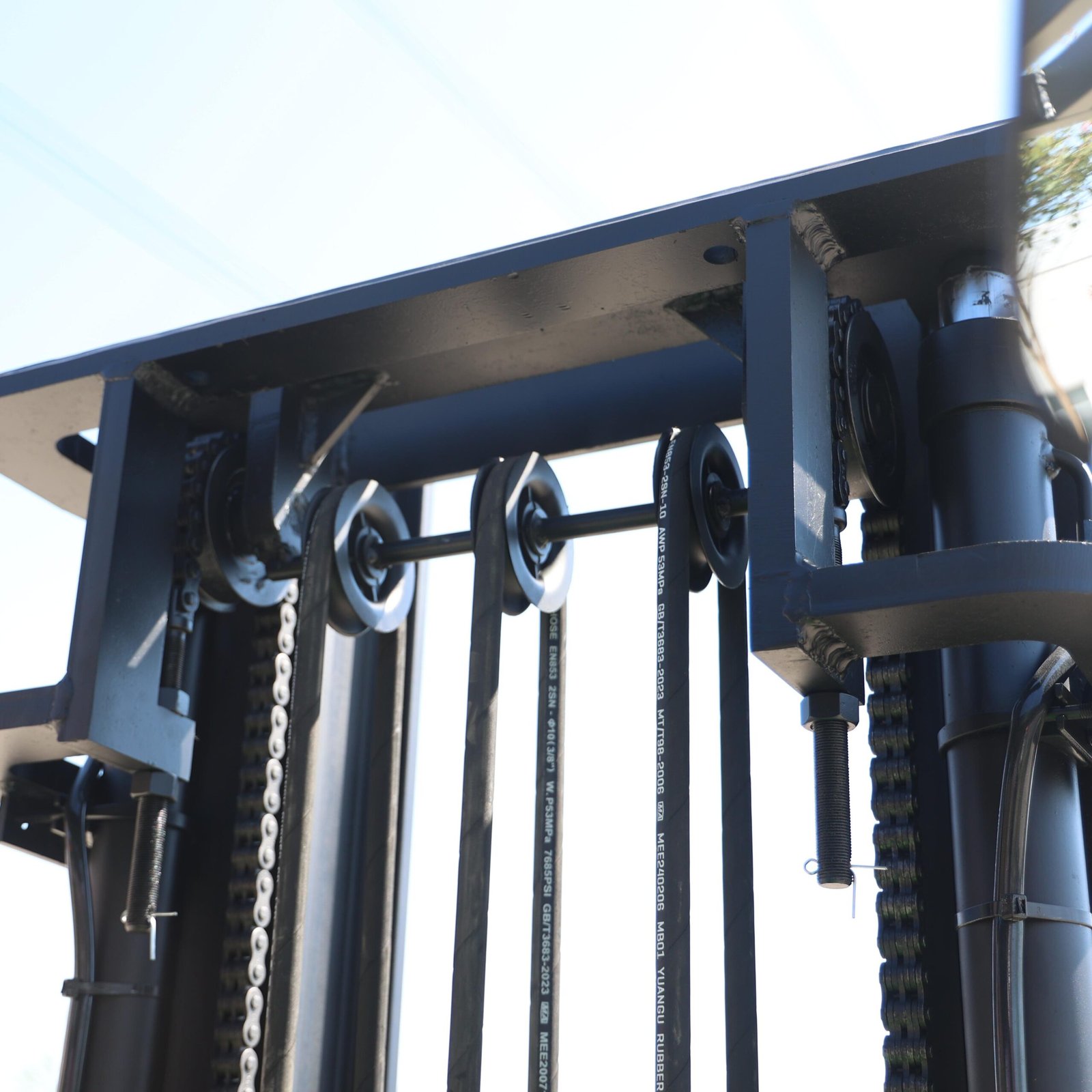

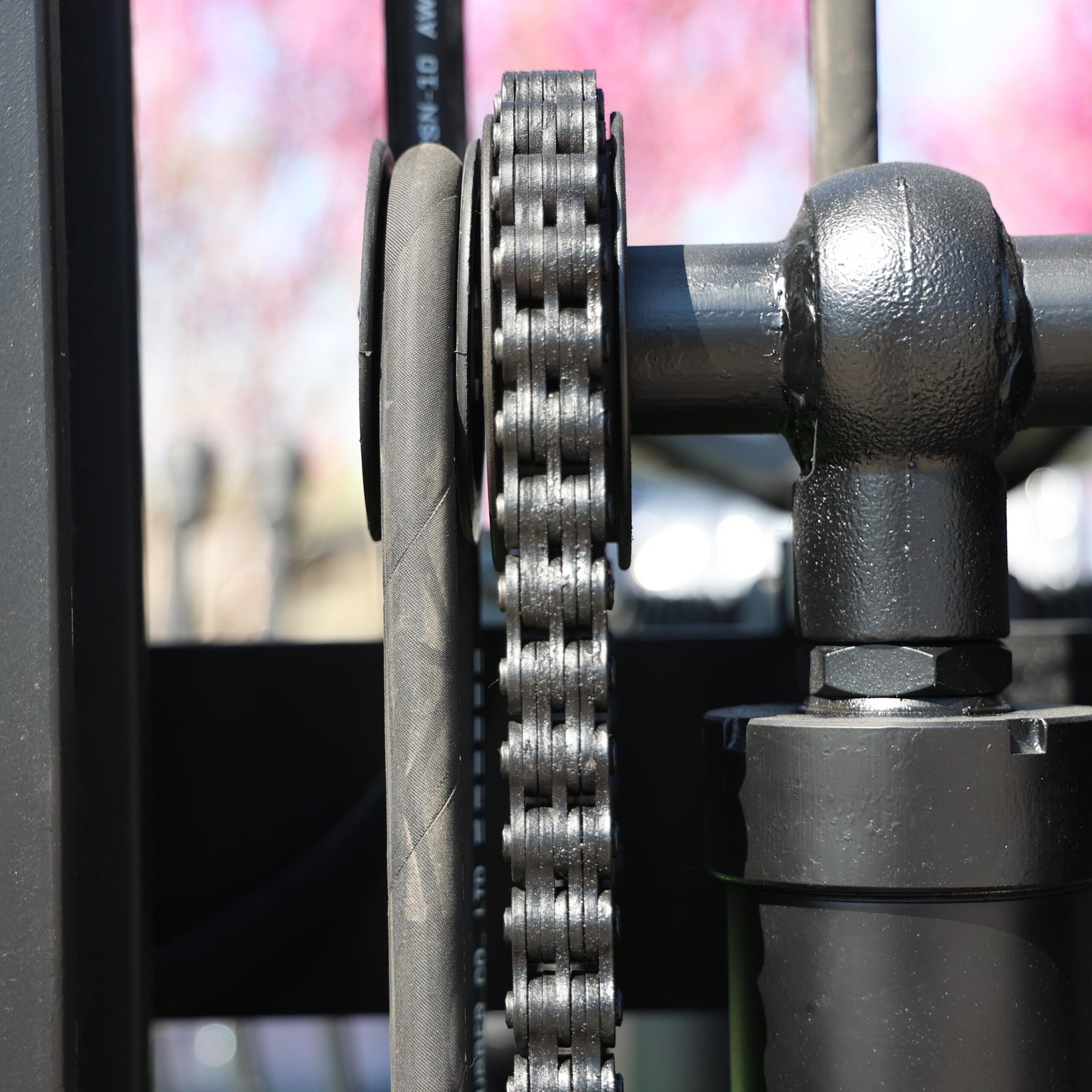

3. High-Strength Mast
The reinforced mast structure is designed to support stable lifting and reliable load handling.

4. Excellent Visibility
The wide-view mast design helps the operator monitor the load and surrounding work area.

5. V-Shaped Overhead Guard
The overhead guard provides operator protection from falling objects during normal forklift operation.

Vehicle Specifications

Parameter	Specification
Maximum Lifting Capacity	3,000 kg
Overall Length (Without Forks)	2,700 mm
Overall Length (Including Forks)	3,920 mm
Overall Width	1,200 mm
Overall Height	2,100 mm
Overall Weight	3,800 kg

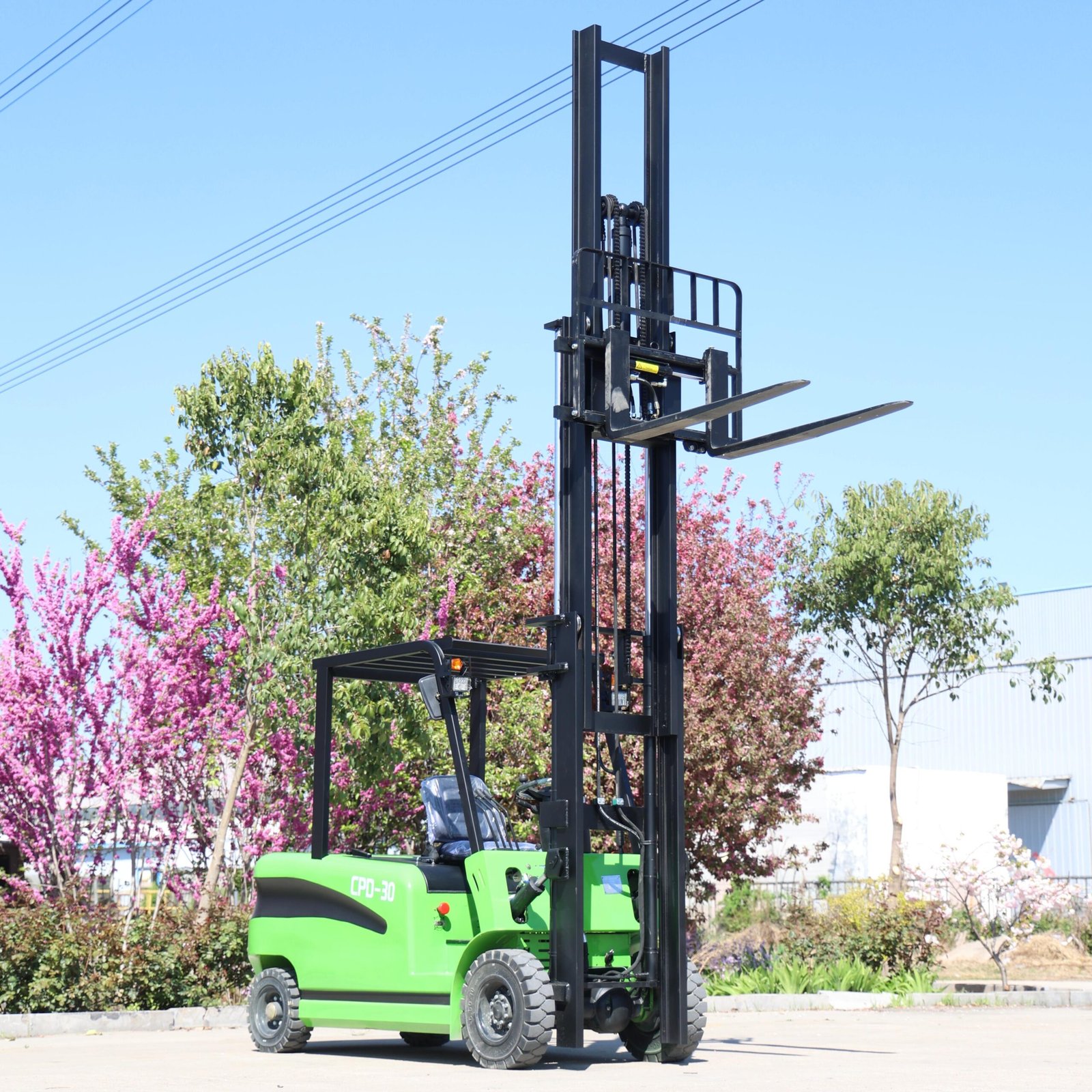

Maximum Lift Height	3,000 mm (Customizable)
Mast Material	High-Strength Steel
Drive Motor	7,500 W AC Motor
Voltage	60V or 80V
Power Type	Electric
Battery	Lead-Acid or Lithium Battery
Lights & Signals	LED Headlights, Turn Signals, Brake Lights, Reversing Light, Instrument Panel, Electric Horn

Mast & Other Configurations

Parameter	Specification

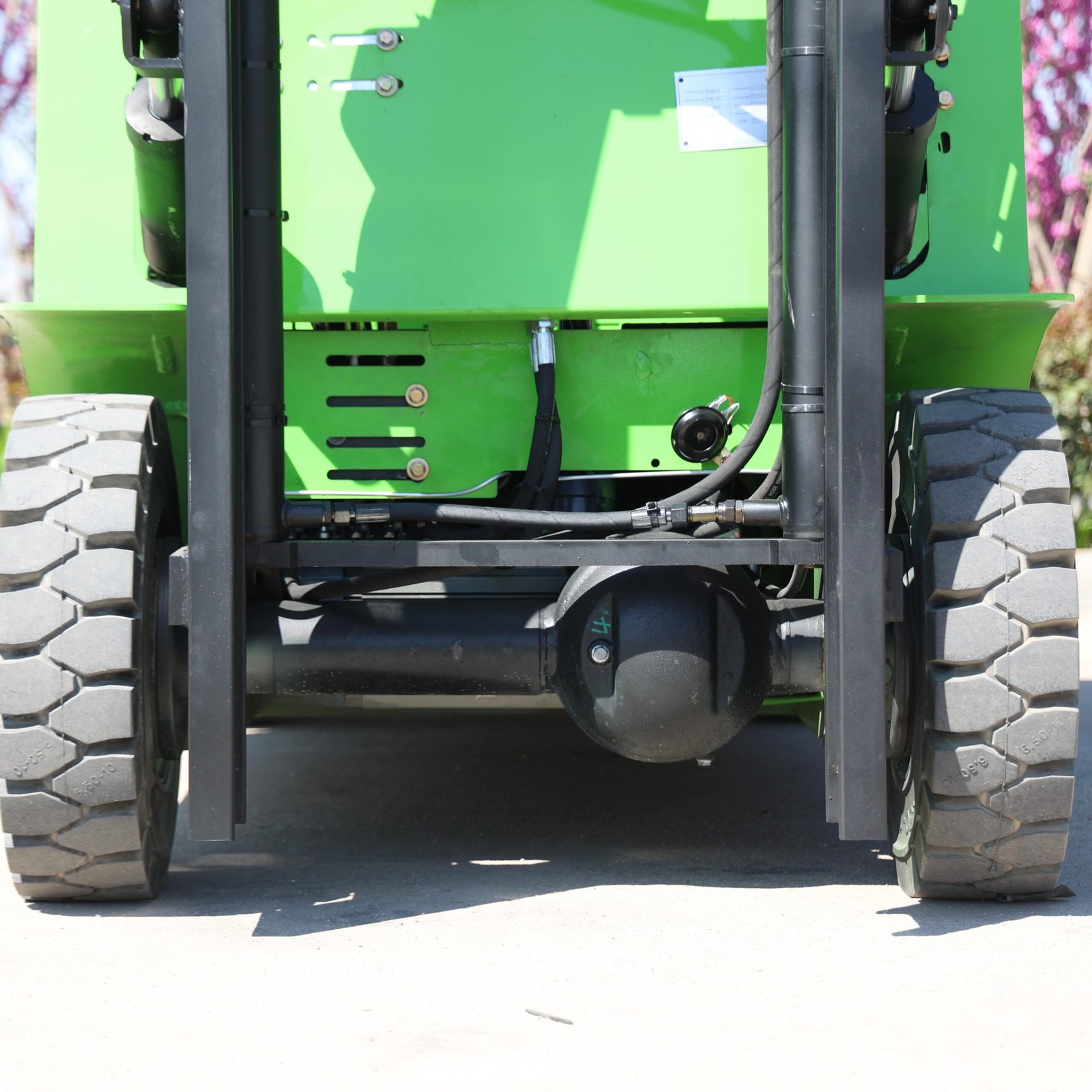

Front Axle	Full-Floating One-Piece Drive Axle
Front Tires	23 × 9-10 Solid Tires, A Level (as stated in source image)
Rear Tires	18 × 7-8 Solid Tires, A Level (as stated in source image)
Brake System	Front-Wheel Hydraulic Brake
Steering System	Manual Steering with Hydraulic Assist

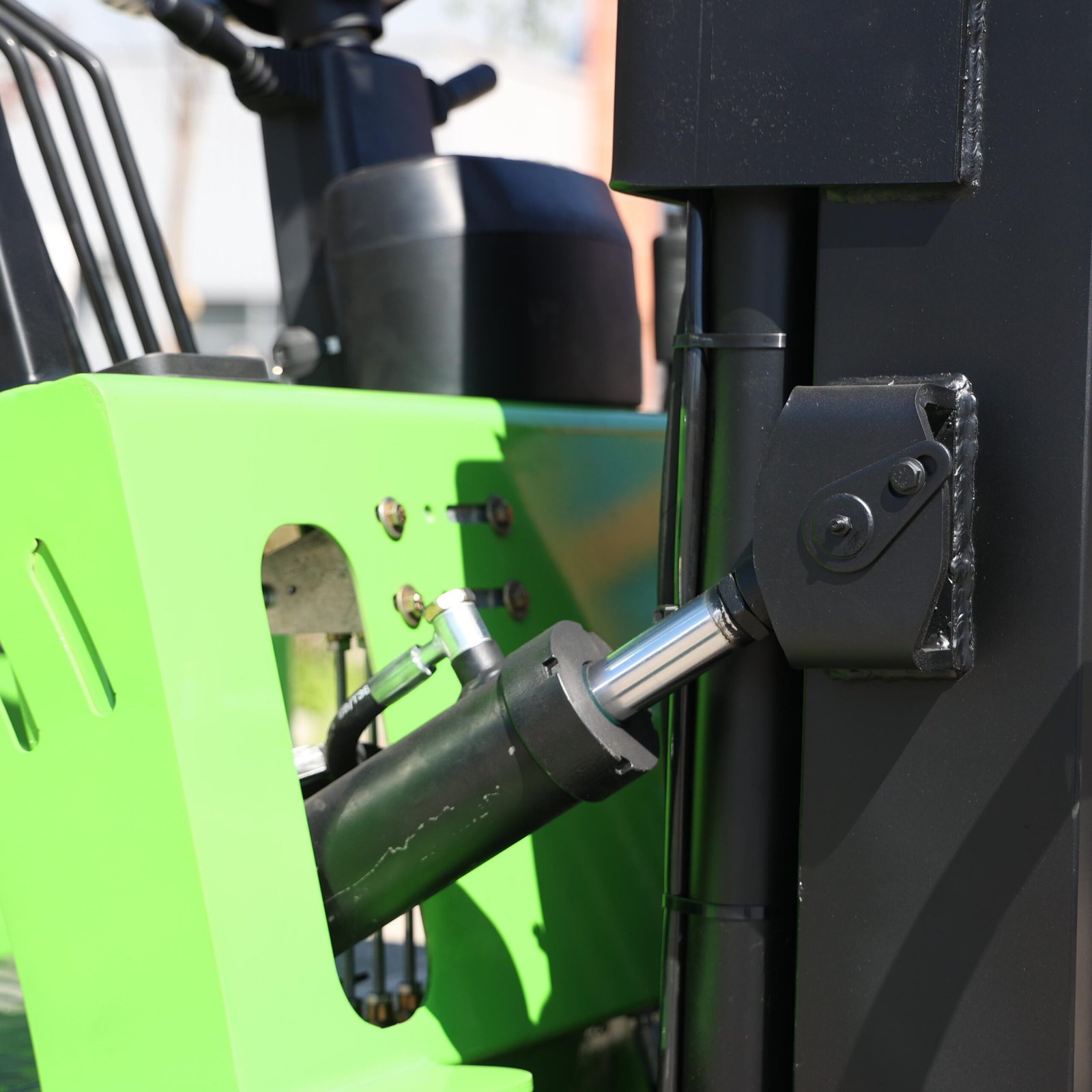

Lifting Cylinder	High-Strength Double-Action Cylinder
Fork Size (L × W × T)	1,220 mm × Customized Width × Customized Thickness
Oil Cylinder	Sealed Oil Cylinder
Drive Motor	5,000 W AC Motor (as stated in source table; confirm final configuration)
Mast Material	148 × 8 mm H-Type Steel
Steering Mode	Hydraulic Power Steering
Steering Angle	90° Manual Left / Right
Charging Time	5–8 Hours
Continuous Working Time	Approx. 5 Hours
Maximum Climbing Ability	15°
Minimum Turning Radius	1,220 mm (as stated in source image; verify before publication)

Key Advantages

LOW NOISE
Quiet electric operation helps create a more comfortable working environment.

LOW OPERATING COST
Electric power helps reduce fuel expenses and routine engine maintenance.

HIGH EFFICIENCY
The electric drive and hydraulic lifting systems support regular heavy-load handling.

WIDE APPLICATION
Suitable for manufacturing plants, warehouses, logistics centers, and distribution facilities.

Customization Options

Battery type, mast height, fork dimensions, body color, company logo, tires, charger, and attachments can be customized according to actual requirements.

Looking for a 3 Ton Electric Forklift?
Contact MIWO for factory pricing, technical specifications, and a configuration tailored to your material handling needs.

Note: Specifications are for reference only. Confirm motor ratings, tire sizes, turning radius, and final configuration before ordering.
