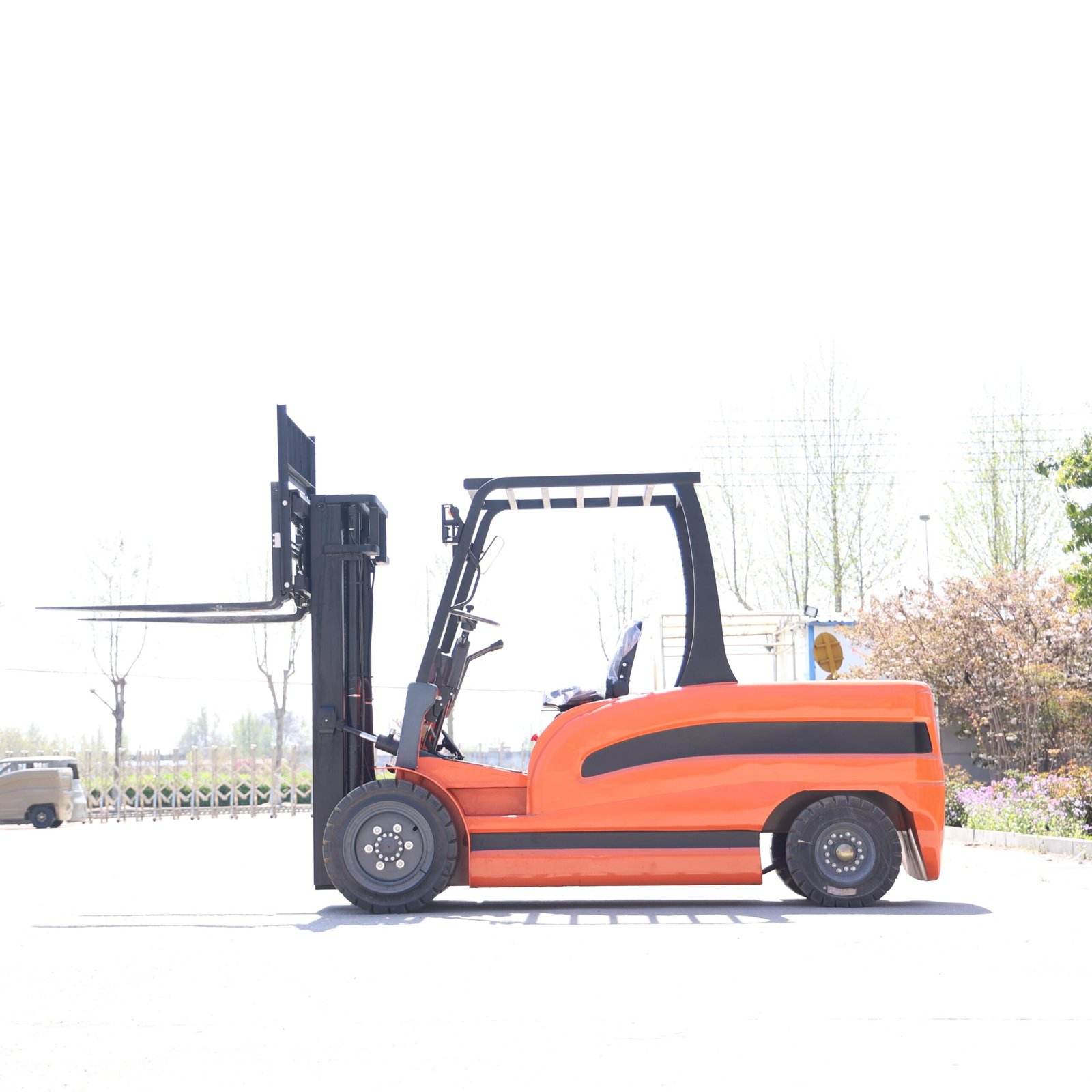

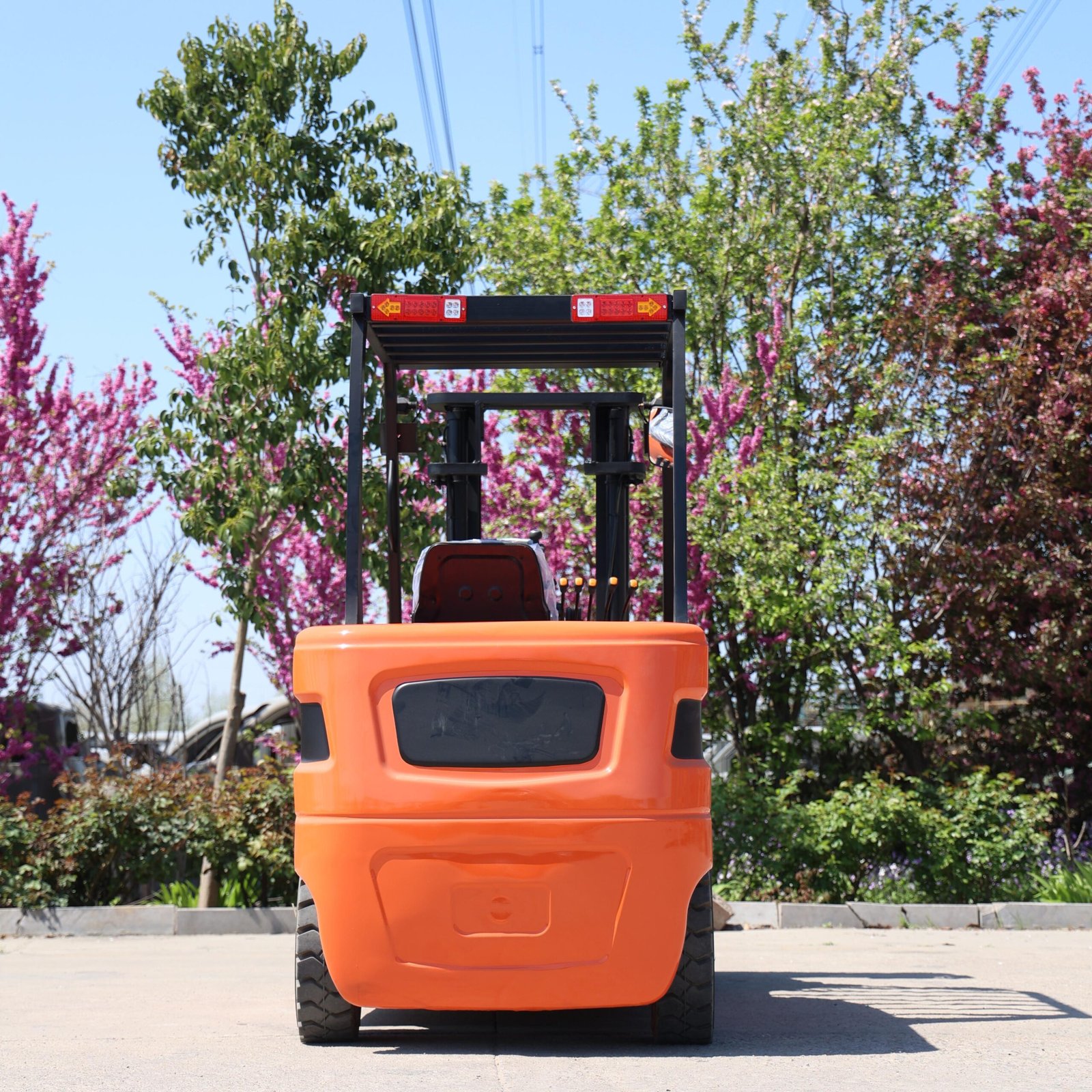

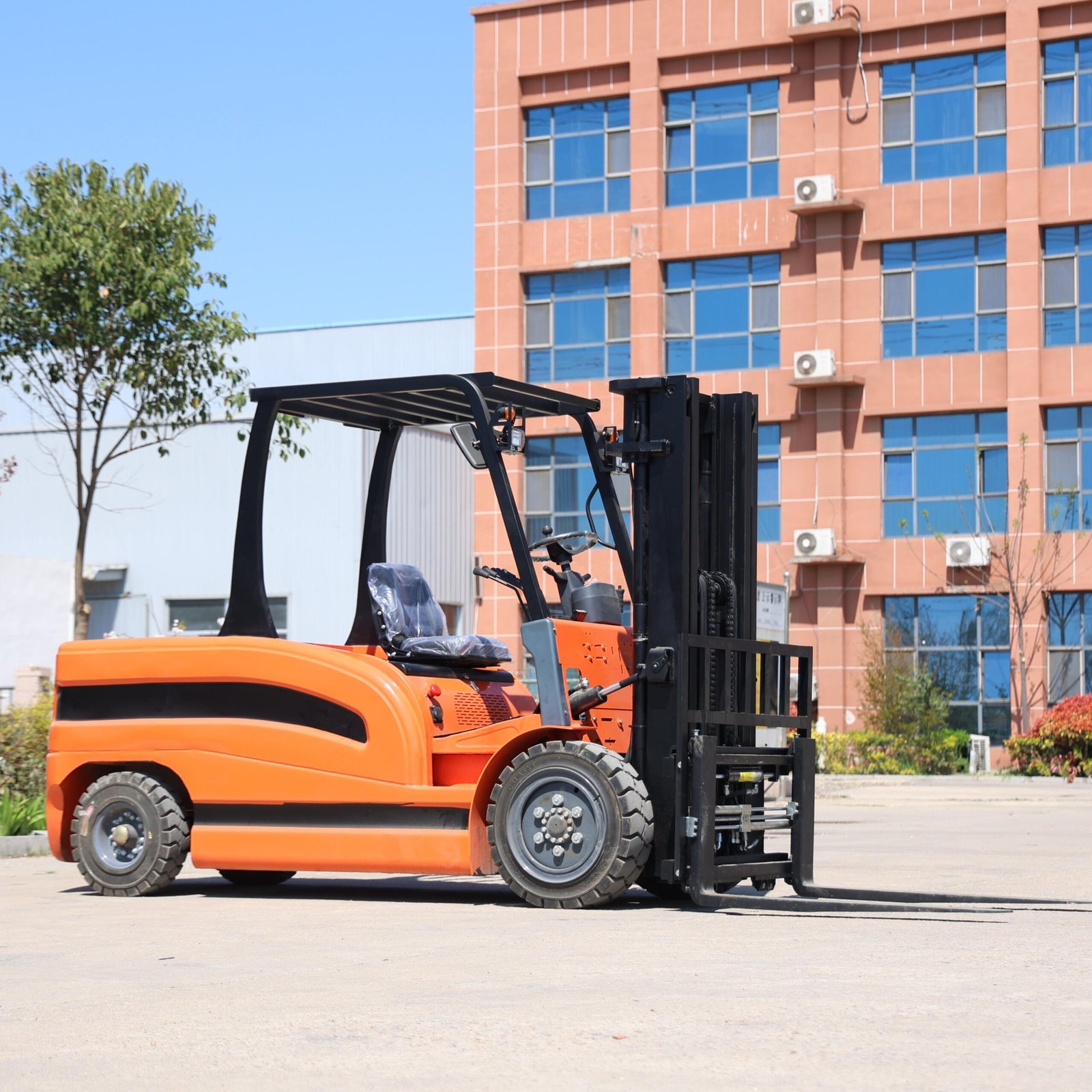

CPD-50 5 Ton Electric Forklift

Product Overview

The MIWO CPD-50 5 ton electric forklift is designed for heavy-duty material handling in warehouses, manufacturing plants, logistics centers, and industrial facilities. With a rated load capacity of 5,000 kg, it is suitable for transporting heavy pallets, industrial components, raw materials, and finished goods.

Powered by an electric drive system, the CPD-50 combines a wide-view mast, solid tire configuration, and an operator-focused control layout to support everyday industrial handling tasks. Its electric powertrain provides an alternative to conventional fuel-powered forklifts in suitable working environments.

Lead-acid and lithium battery options are available, subject to the selected configuration. Customers can discuss mast height, fork specifications, battery requirements, and other available options with MIWO to find a suitable solution for their operations.

Key Features of the CPD-50 5 Ton Electric Forklift

1. 5,000 kg Rated Load Capacity

Designed for heavy-duty material handling, the CPD-50 has a rated load capacity of 5,000 kg under specified operating conditions. It is suitable for moving heavy palletized goods, machinery components, and industrial materials.

2. Electric Drive System

The electric drive system supports material transportation and routine lifting operations. Actual performance and operating costs depend on the selected motor and battery configuration, load weight, and working conditions.

3. Wide-View Mast

The wide-view mast design helps improve the operator’s forward visibility during lifting and handling operations. The final mast configuration and lifting height should be selected according to the application.

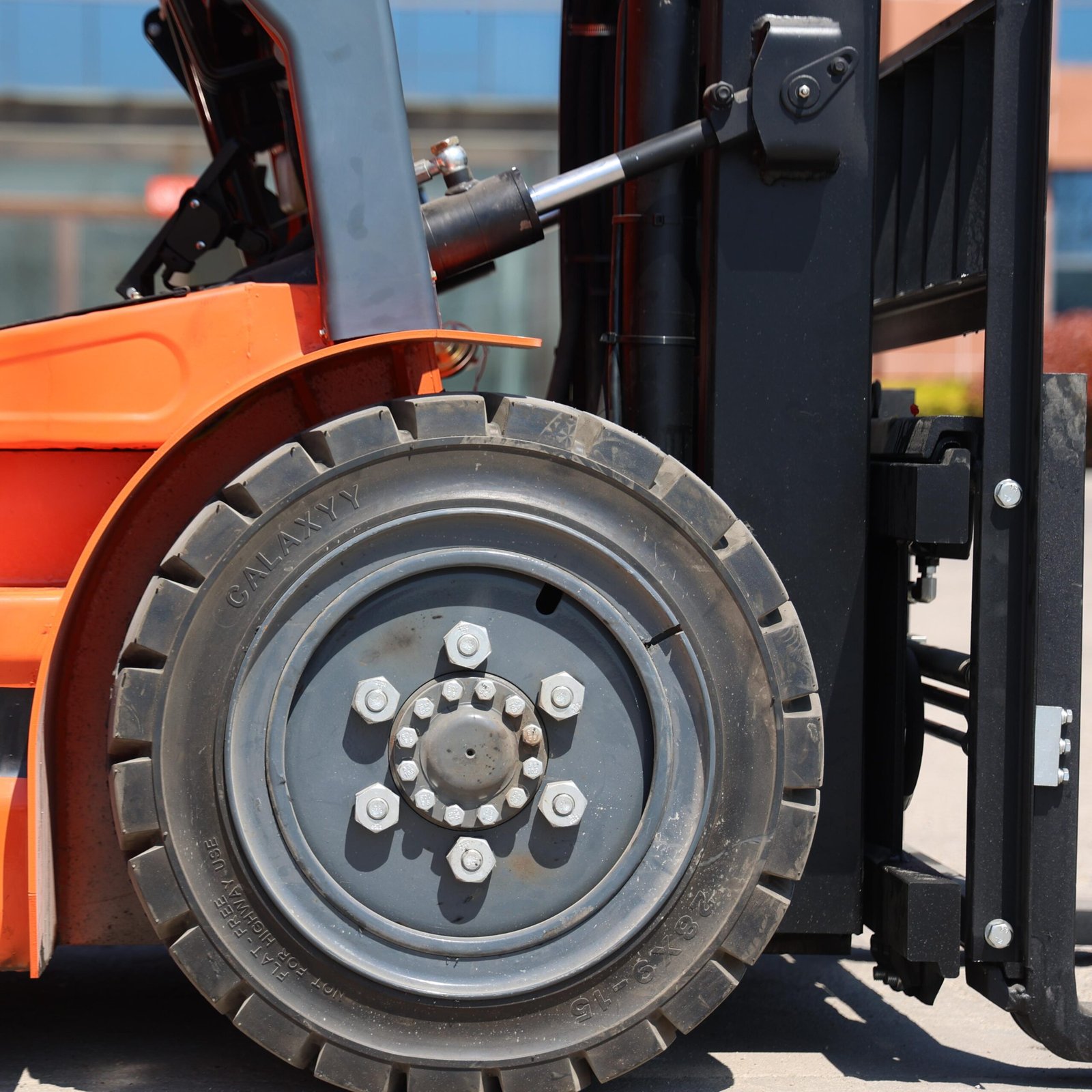

4. Solid Tires

The solid tire configuration is designed for suitable industrial surfaces. Solid tires help reduce the risk of punctures and can support reliable operation in appropriate working environments.

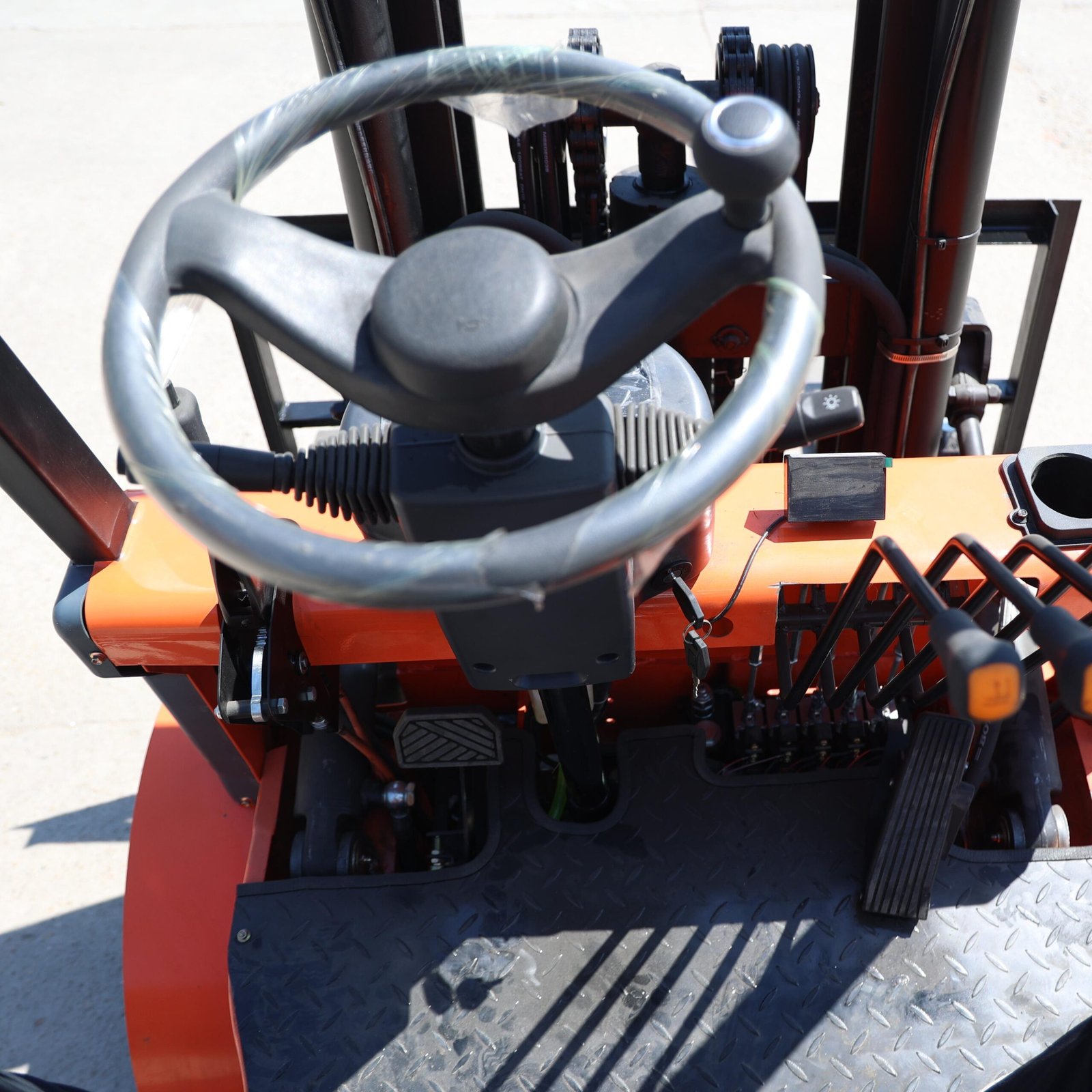

5. Operator-Focused Design

The CPD-50 features a steering wheel, hydraulic control levers, and an overhead guard designed to support everyday forklift operation. Operators should always follow the manufacturer’s operating and safety instructions.

6. Customizable Battery and Fork Options

Lead-acid and lithium battery options are indicated in the product information. Fork dimensions, mast configurations, and selected accessories can be discussed according to your load requirements and operating environment.

Technical Specifications

Item	Specification
Model	CPD-50
Rated Load Capacity	5,000 kg
Overall Length	Approx. 3,100 mm — confirm measurement definition
Overall Width	Approx. 1,200 mm
Overall Height	Approx. 2,150 mm
Overall Weight	Approx. 6,000 kg, including battery — confirm
Minimum Turning Radius	Approx. 3,000 mm — confirm
Maximum Lifting Height	Approx. 3,000 mm — confirm mast configuration
Drive Motor	15 kW AC — confirm
Hydraulic Motor	15 kW AC — confirm
Battery Voltage	60 V or 80 V — confirm configuration
Battery Type	Lead-Acid or Lithium Battery
Tire Type	Solid Tires
Fork Length	Approx. 1,220 mm — confirm standard configuration
Mast Tilt Angle	Forward 6° / Backward 12° — confirm
Continuous Operating Time	Approx. 2–3 hours as indicated in the supplied image; test conditions to be confirmed

Note: The specifications above are based on the supplied product image. Please confirm the final technical data with MIWO before ordering.

Mast & Performance

Item	Specification
Mast Type	Wide-View Mast
Mast Configuration	Confirm available options
Maximum Lifting Height	Approx. 3,000 mm, subject to configuration
Fork Dimensions	Approx. 1,220 mm length, subject to confirmation
Steering System	Hydraulic Power Steering, as indicated in the image
Braking System	Confirm standard configuration
Battery Options	Lead-Acid / Lithium, subject to availability
Charger Input Voltage	Confirm according to destination country
Charging Time	Confirm according to battery and charger configuration
Operating Time	Depends on battery capacity and working conditions
Mast Tilt	Forward 6° / Backward 12°, subject to confirmation

For an accurate configuration, please confirm the required lifting height, load center, fork dimensions, battery capacity, and working hours per shift.

Applications

The CPD-50 5 ton electric forklift can be considered for the following applications:

• Manufacturing Plants: Moving heavy components, raw materials, and finished products.
• Warehouses: Handling heavy palletized goods and supporting internal material transportation.
• Distribution Centers: Moving goods between storage, staging, and dispatch areas.
• Industrial Facilities: Transporting heavy materials on suitable industrial floors.
• Machinery Handling: Moving equipment and components when the load dimensions and rated capacity are appropriate.
• Logistics Operations: Supporting loading, unloading, and internal goods movement.

Before selecting a forklift for a specific application, confirm the load center, lifting height, aisle width, floor conditions, and any attachment requirements.

Optional Configurations

Depending on model compatibility and availability, customers can discuss the following options:

• Lead-acid or lithium battery configurations
• Available mast types and lifting heights
• Customized fork dimensions
• Charger configuration for the destination market
• Tire options suitable for the working surface
• Compatible attachments, subject to residual-capacity requirements
• Logo and color customization, subject to confirmation

Please provide your load dimensions, required lifting height, working environment, battery preference, and daily operating hours so our team can recommend a suitable configuration.

Why Choose MIWO?

Product Selection Support

Discuss your material handling requirements with our sales team to identify suitable specifications for your application.

Configuration Options

Review available battery, mast, fork, and accessory options before confirming your order.

Application-Based Recommendations

Share your load weight, load dimensions, lifting height, and working environment so we can help evaluate the appropriate configuration.

Pre-Delivery Confirmation

Confirm the product specifications, selected configuration, packaging requirements, and order details before shipment.

Export Support

Discuss export packaging, shipping arrangements, and the documentation required for your destination market.

For factory information, quality-control procedures, and available customization services, please contact MIWO for further details.

Frequently Asked Questions

What is the rated load capacity of the CPD-50?

The CPD-50 is listed with a rated load capacity of 5,000 kg. Actual allowable capacity depends on the load center, lifting height, attachments, and the forklift’s rated capacity chart.

Is the CPD-50 available with lithium batteries?

Lead-acid and lithium battery options are indicated in the product information. Please confirm the compatible battery voltage, capacity, and charger configuration with our sales team.

What is the standard lifting height?

The supplied product image indicates a maximum lifting height of approximately 3,000 mm. Available mast configurations and lifting heights should be confirmed before ordering.

How long can the forklift operate on one charge?

The supplied image indicates approximately 2–3 hours of continuous operating time. Actual runtime depends on battery capacity, load weight, travel distance, lifting frequency, and working conditions. Please confirm the test conditions and battery specifications with MIWO.

Can I customize the fork length and mast height?

Available fork dimensions and mast configurations can be discussed according to your application. Please provide the required lifting height, load dimensions, and load center for confirmation.

Is the CPD-50 suitable for indoor and outdoor applications?

Suitability depends on the working surface, floor conditions, gradients, weather exposure, aisle width, and tire configuration. Please describe your operating environment so our team can evaluate the appropriate configuration.

How can I get a quotation for the CPD-50?

Send us your destination country or port, order quantity, required lifting height, battery preference, and any special requirements. Our team can confirm the available specifications and prepare a quotation.

Request a Quote for the CPD-50

Looking for a 5 ton electric forklift for your warehouse, manufacturing plant, or industrial operation?

Contact MIWO to discuss the CPD-50, confirm available configurations, and request a factory quotation.

Please provide the following information:

• Destination country or port
• Required quantity
• Required lifting height
• Battery preference
• Expected working hours per shift
• Load weight and dimensions
• Indoor or outdoor working environment
• Special fork, attachment, or customization requirements

Contact MIWO today for CPD-50 specifications, configuration details, and factory pricing.
