CPD-35 3.5 Ton Electric Forklift

Product Overview

The MIWO CPD-35 is a 3.5 ton electric forklift designed for industrial material handling, warehouse operations, manufacturing plants, and distribution centers. With a rated load capacity of 3,500 kg, it is suitable for moving heavy pallets, transporting materials, and supporting daily loading and unloading operations.

Powered by a 10,000 W AC drive motor, the CPD-35 combines electric operation with a reinforced steel mast and a durable chassis. Its configuration can be adjusted according to different lifting requirements, working environments, and customer needs.

Lead-acid and lithium battery options are available, allowing customers to select a suitable power solution for their operating schedule and budget.

Key Features of the CPD-35 Electric Forklift

1. 3,500 kg Rated Load Capacity

Designed to handle loads of up to 3,500 kg under specified operating conditions, the CPD-35 is suitable for demanding material handling tasks in industrial and commercial environments.

2. Powerful AC Drive Motor

The 10,000 W AC drive motor provides power for vehicle travel and material handling operations. The electric drive system supports quiet operation without direct exhaust emissions during use.

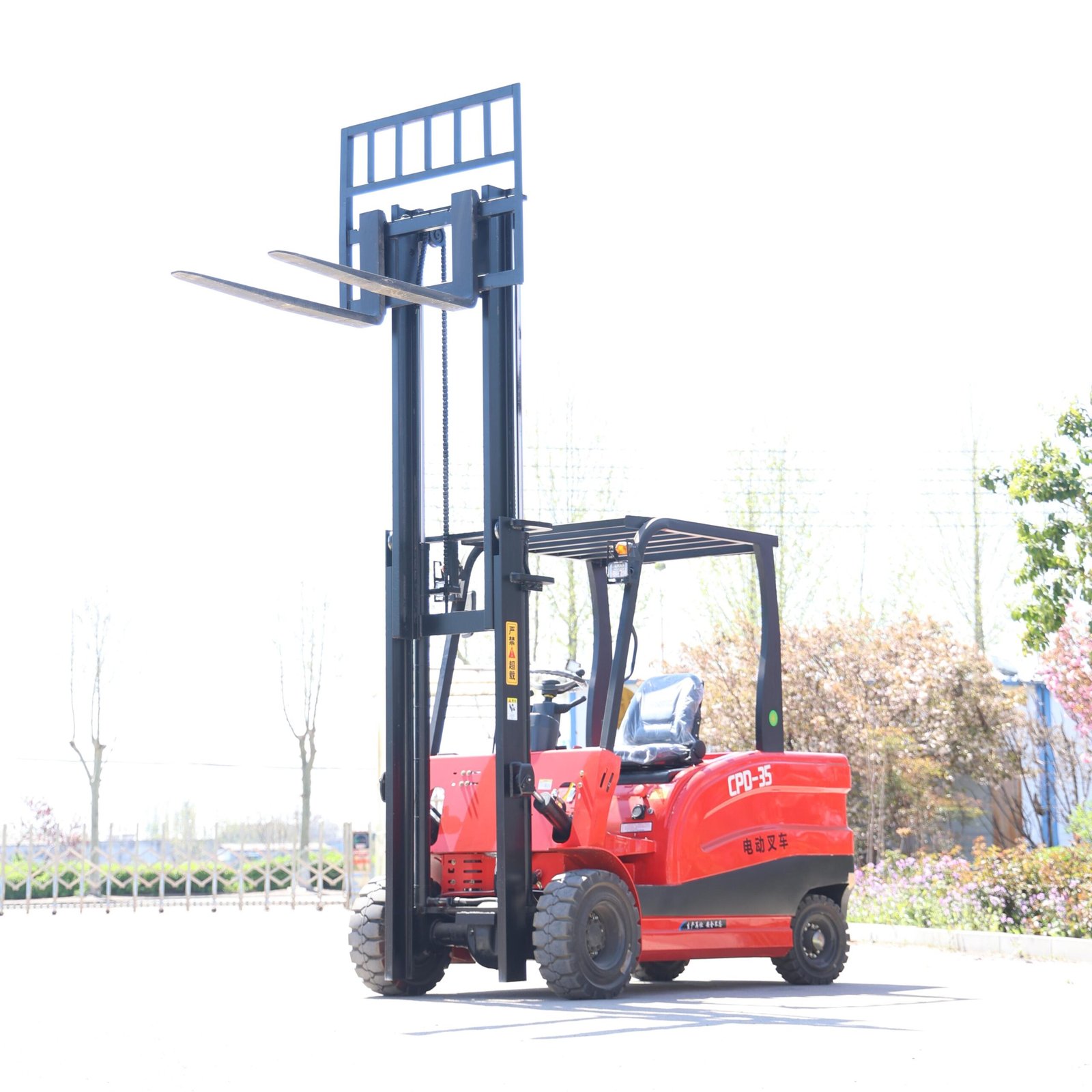

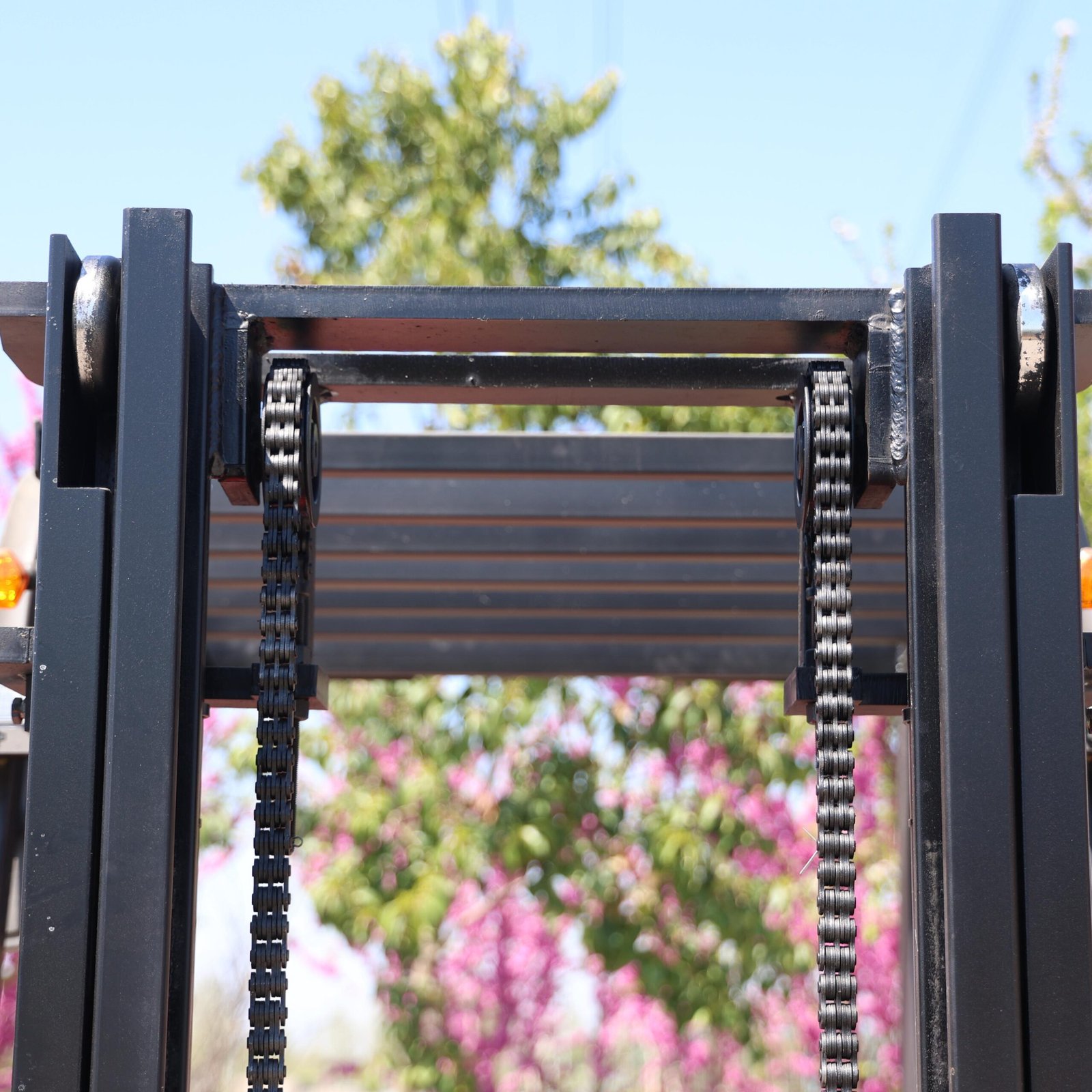

3. Reinforced Steel Mast

The thickened C-type steel mast is designed to provide structural strength and support lifting operations. A 3 m lifting height is available as an option, subject to the selected configuration.

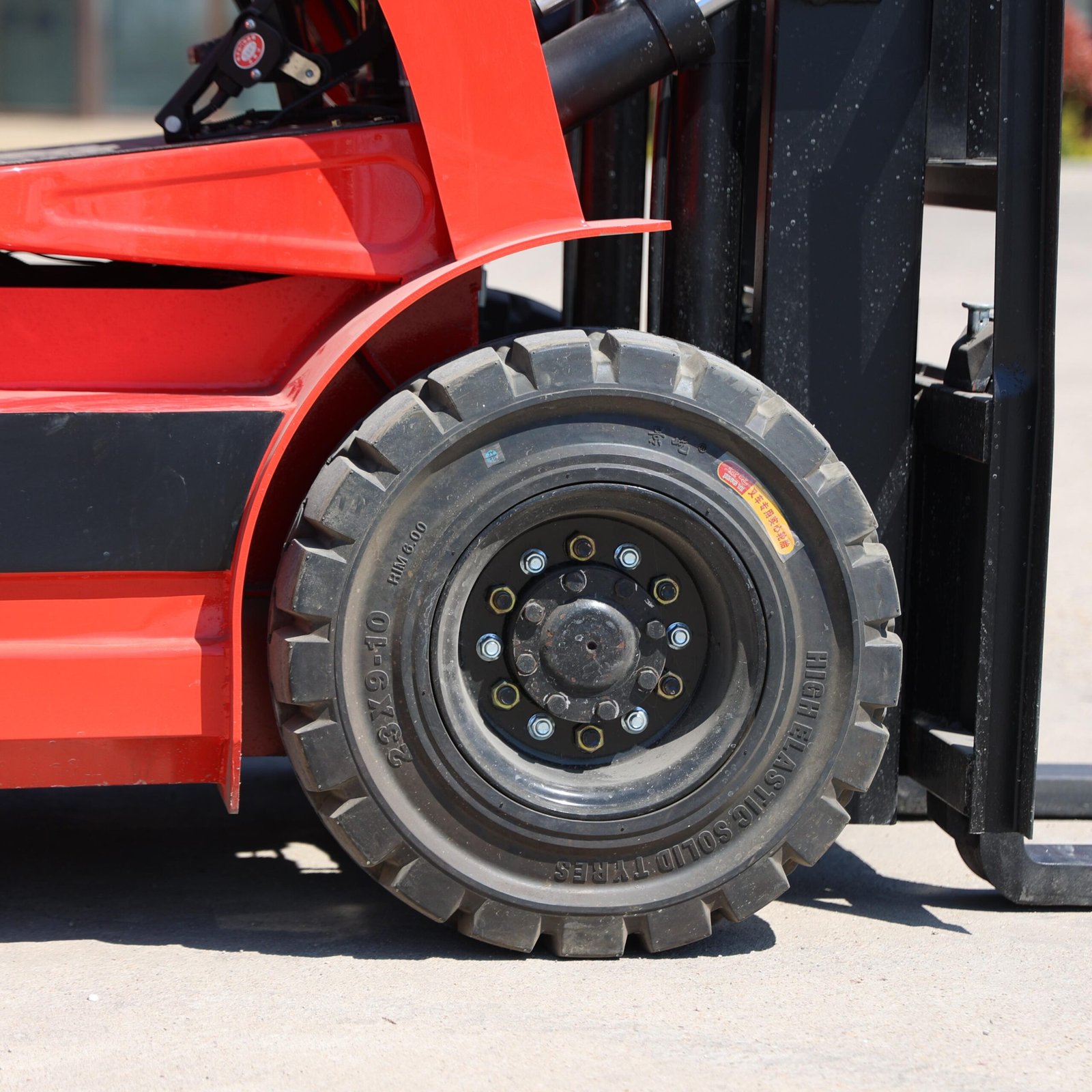

4. Solid Tires for Industrial Use

Solid tire configurations are available for suitable industrial surfaces. Tire selection can be discussed according to the floor condition, operating environment, and application requirements.

5. Flexible Battery Options

The CPD-35 can be configured with a lead-acid battery or a lithium battery, depending on availability and the customer’s requirements. Ask our sales team to confirm the compatible battery capacity, charger, and charging specifications.

6. Customizable Configuration

Mast height, fork specifications, battery type, and other available configurations can be discussed before ordering. Customization depends on the selected model and technical feasibility.

Technical Specifications

Item	Specification
Model	CPD-35
Rated Load Capacity	3,500 kg
Overall Width	1,200 mm
Overall Height	2,100 mm
Fork Length (excluding fork)	2,800 mm
Fork Length (including fork)	4,020 mm
Curb Weight	4,300 kg
Mast Lift Height	3 m (optional)
Drive Motor	10,000 W AC Motor
Voltage	60 V or 80 V
Power Type	Electric
Battery	Lead-acid battery or lithium battery
Mast Type	Full Free 2-Stage Wide-View Mast
Steering System	Manual Steering, Hydraulic Assist
Lifting Cylinder	High-Strength Dual Oil Cylinder
Fork Size	1,220 mm (forged fork)
Mast Material	Thickened C-Type Steel
Steering Angle	90° left / right
Charging Time	5–8 hours (configuration dependent)
Continuous Working Time	Approximately 5 hours (operating conditions dependent)
Climbing Ability	15° (confirm test conditions and load status)
Lights & Signals	Headlights, turn signals, brake lights, reversing light, instrument, and electric horn

Note: Specifications are for reference. Actual performance and dimensions depend on the final configuration. Rated capacity may vary with load center and lifting height. Please confirm the final technical data sheet before ordering.

Applications

The CPD-35 electric forklift can be considered for the following applications:

• Manufacturing Plants: Moving raw materials, components, and finished goods.
• Warehouses: Handling heavy pallets and organizing inventory.
• Distribution Centers: Supporting loading, unloading, and internal transportation.
• Industrial Facilities: Moving heavy materials between production and storage areas.
• Commercial Logistics: Handling palletized goods where an electric forklift is suitable for the floor and working conditions.

Optional Configurations

Depending on model compatibility and availability, customers can discuss the following options:

• Lead-acid or lithium battery
• Different mast heights
• Customized fork dimensions
• Tire options for different operating surfaces
• Lighting and warning equipment
• Charger specifications
• Additional attachments, subject to compatibility

Please provide your load weight, lifting height, working environment, and daily operating hours so our team can recommend an appropriate configuration.

Why Choose MIWO?

Factory-Direct Communication

Discuss your requirements directly with our sales team to clarify product specifications, configuration options, and export arrangements.

Configuration Support

We help customers select suitable battery options, mast heights, forks, and other available configurations based on their applications.

Pre-Delivery Inspection

Inspection and functional testing can be arranged according to the confirmed order requirements. Ask us about the inspection process and available testing records.

Export Support

We can discuss export packaging, shipping arrangements, and the documentation required for your destination market.

Frequently Asked Questions

What is the rated capacity of the CPD-35?

The CPD-35 has a rated load capacity of 3,500 kg. Actual allowable loads depend on the load center, lifting height, and final configuration.

Is the CPD-35 available with a lithium battery?

Lithium battery configurations may be available. Please confirm the compatible battery capacity, voltage, charger, and configuration with our sales team.

What is the standard lifting height?

The provided specification lists a 3 m lifting height as an optional configuration. Other mast options should be confirmed before ordering.

How long can the forklift operate on one charge?

The reference specification indicates approximately 5 hours of continuous working time. Actual runtime varies with load, operating intensity, battery capacity, floor conditions, and driving habits.

Can I customize the forklift?

Available customization may include mast height, fork specifications, and battery type. Please share your requirements so we can confirm feasibility.

How can I get a quotation?

Send us your destination country, required quantity, lifting height, battery preference, and application. Our team can then confirm the configuration and prepare a quotation.

Request a Quote for the CPD-35

Looking for a 3.5 ton electric forklift for your warehouse or industrial operation?

Contact MIWO to discuss specifications, available configurations, and export pricing.

Request a Factory Quote and tell us:

• Destination country
• Required quantity
• Lifting height
• Battery preference
• Working environment
• Any special requirements
