3Ton Electric Pallet Truck

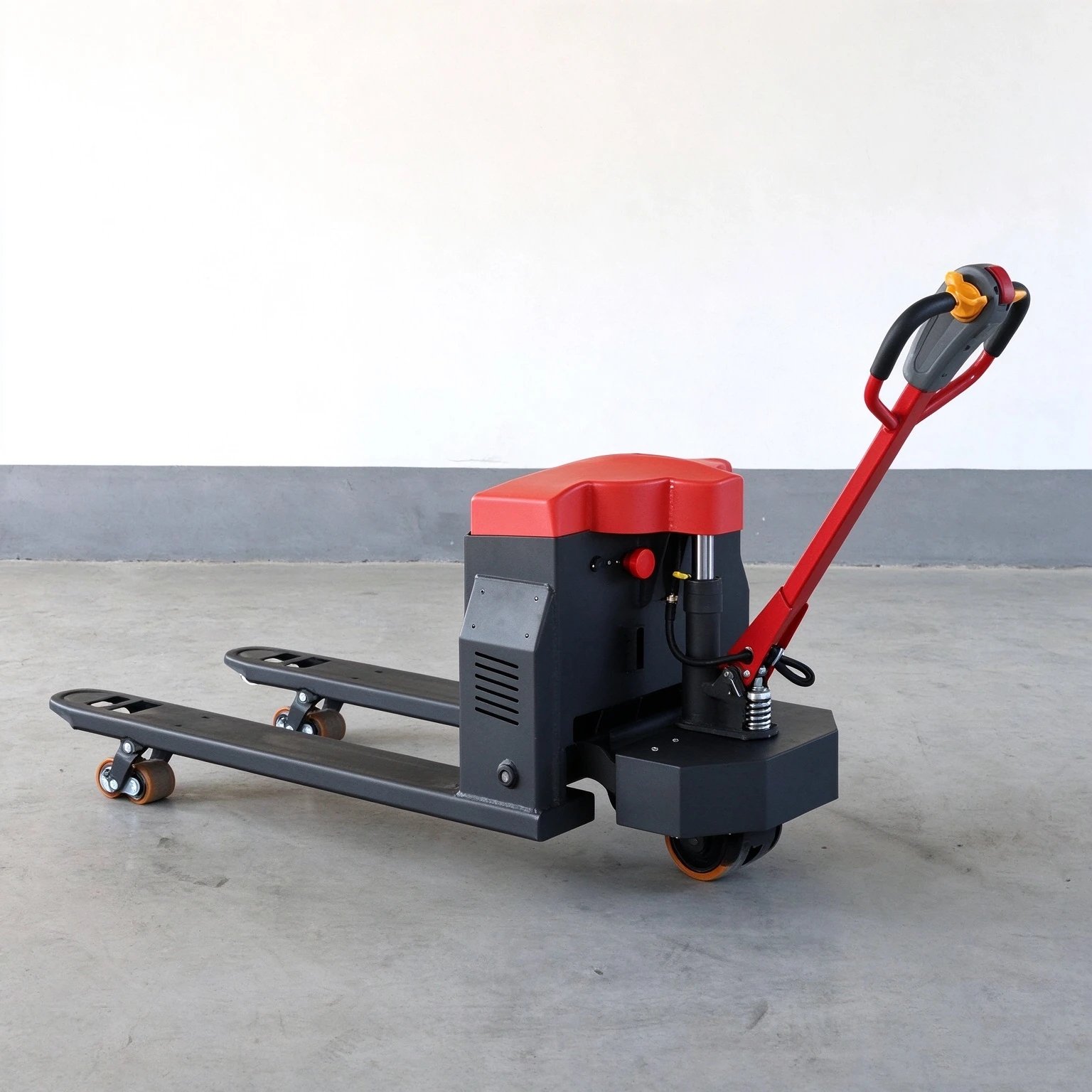

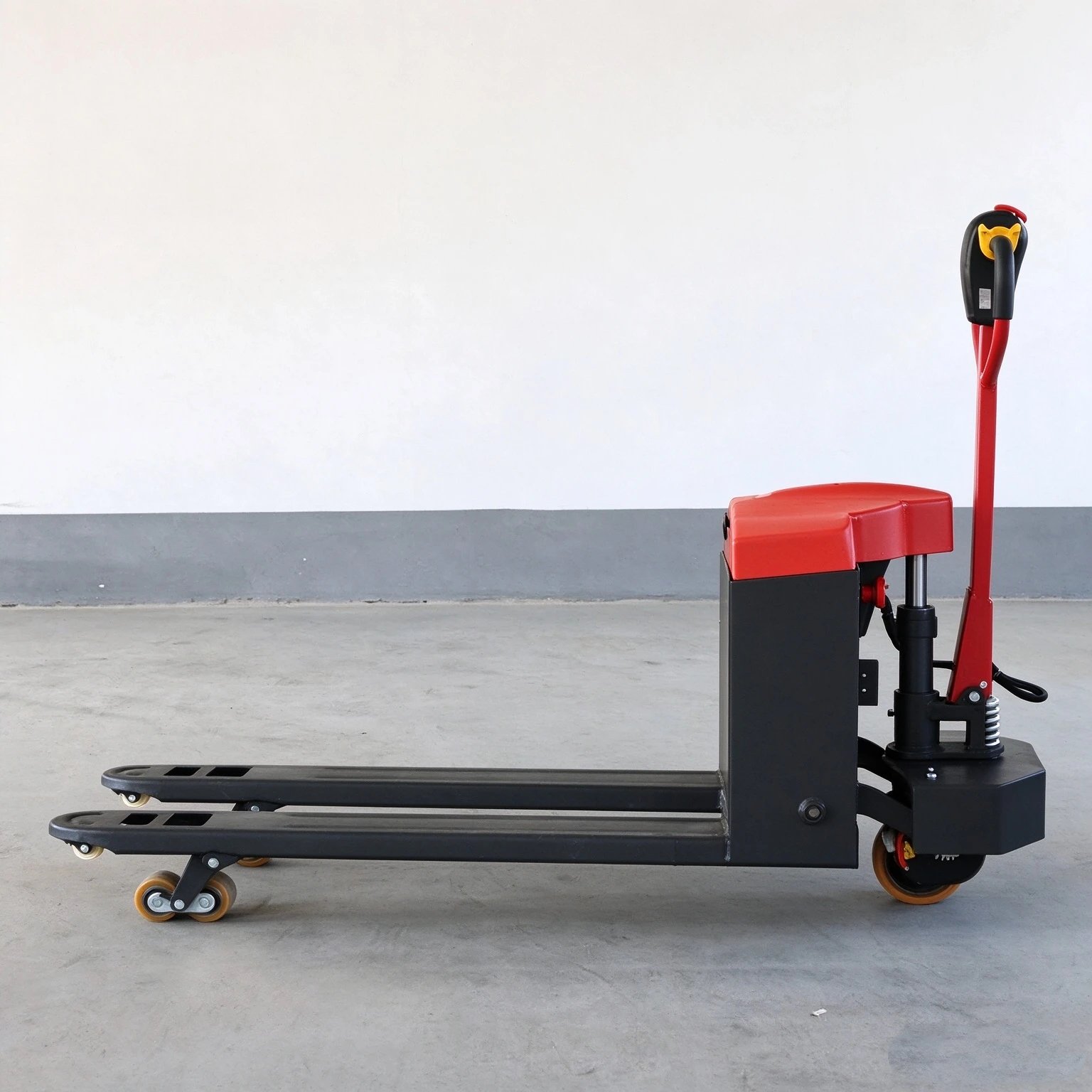

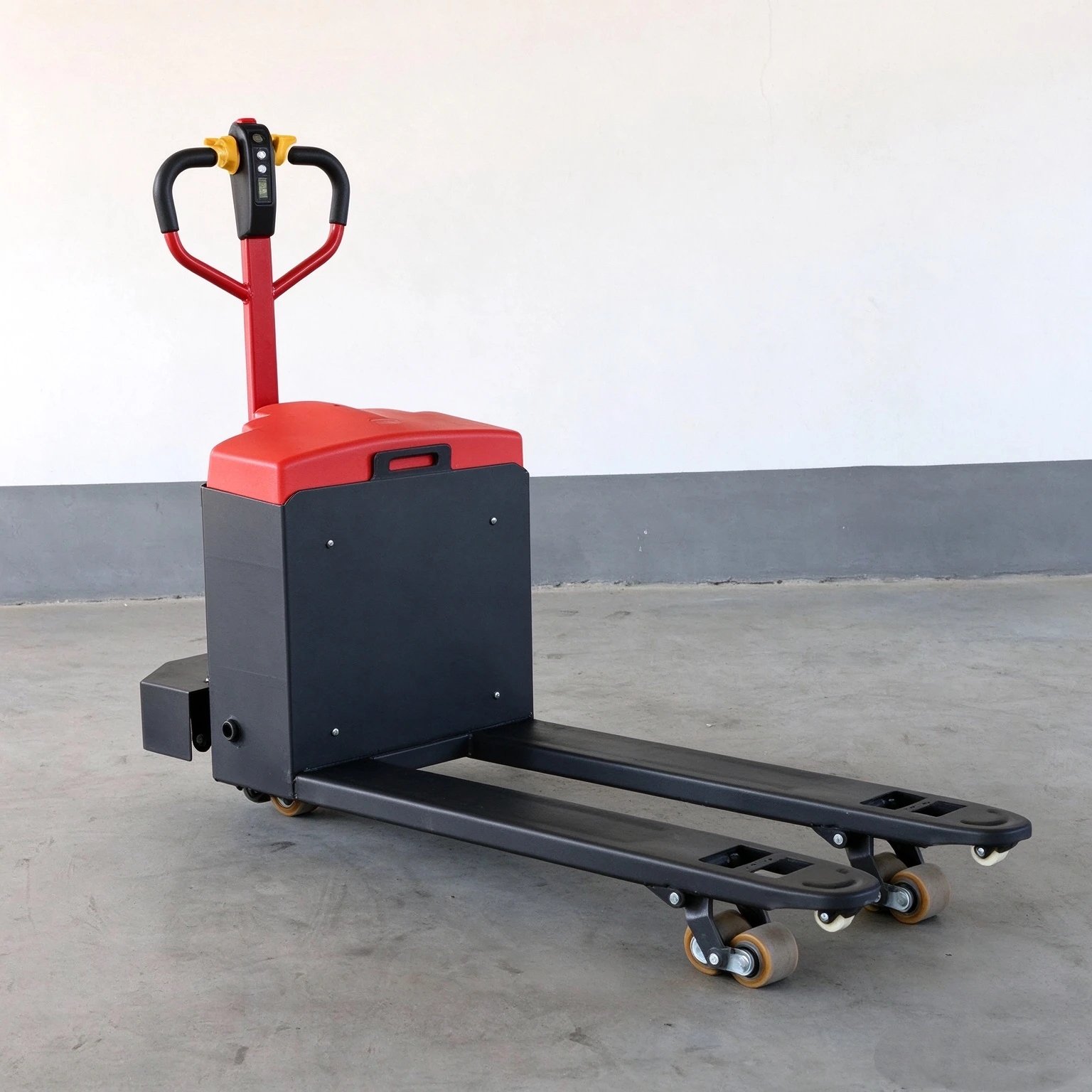

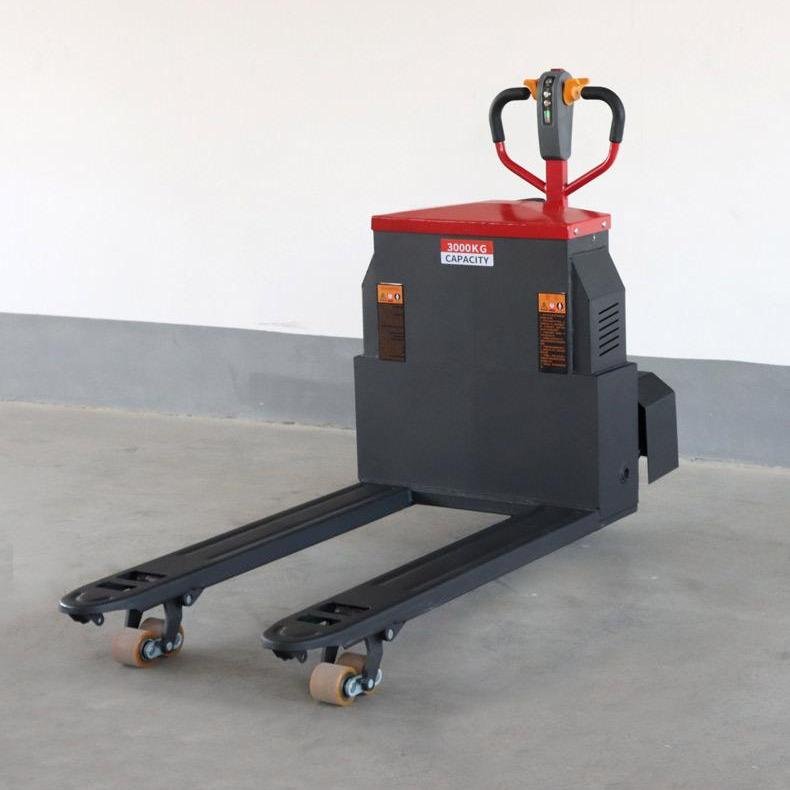

CBD 3 Ton Standard Electric Pallet Truck

The CBD 3 ton electric pallet truck is a cost-effective workhorse designed for indoor pallet moving operations. With a rated load capacity of 3000kg, it handles heavy palletized goods effortlessly. It features compact overall length of 1760mm and turning radius of 1350mm, making it flexible to maneuver in narrow warehouse aisles.

The fork reaches a lifting height of 200mm with a minimum lowered height of 85mm, compatible with most standard pallets. Travel speed hits 4.8km/h empty and 5.2km/h under full load, ensuring stable and efficient transit. Equipped with 48V battery options (20Ah /32Ah), it supports long shift working hours. Weighing only 169kg, this pallet truck balances solid load capacity and lightweight body, easy for operators to control with the ergonomic handle.

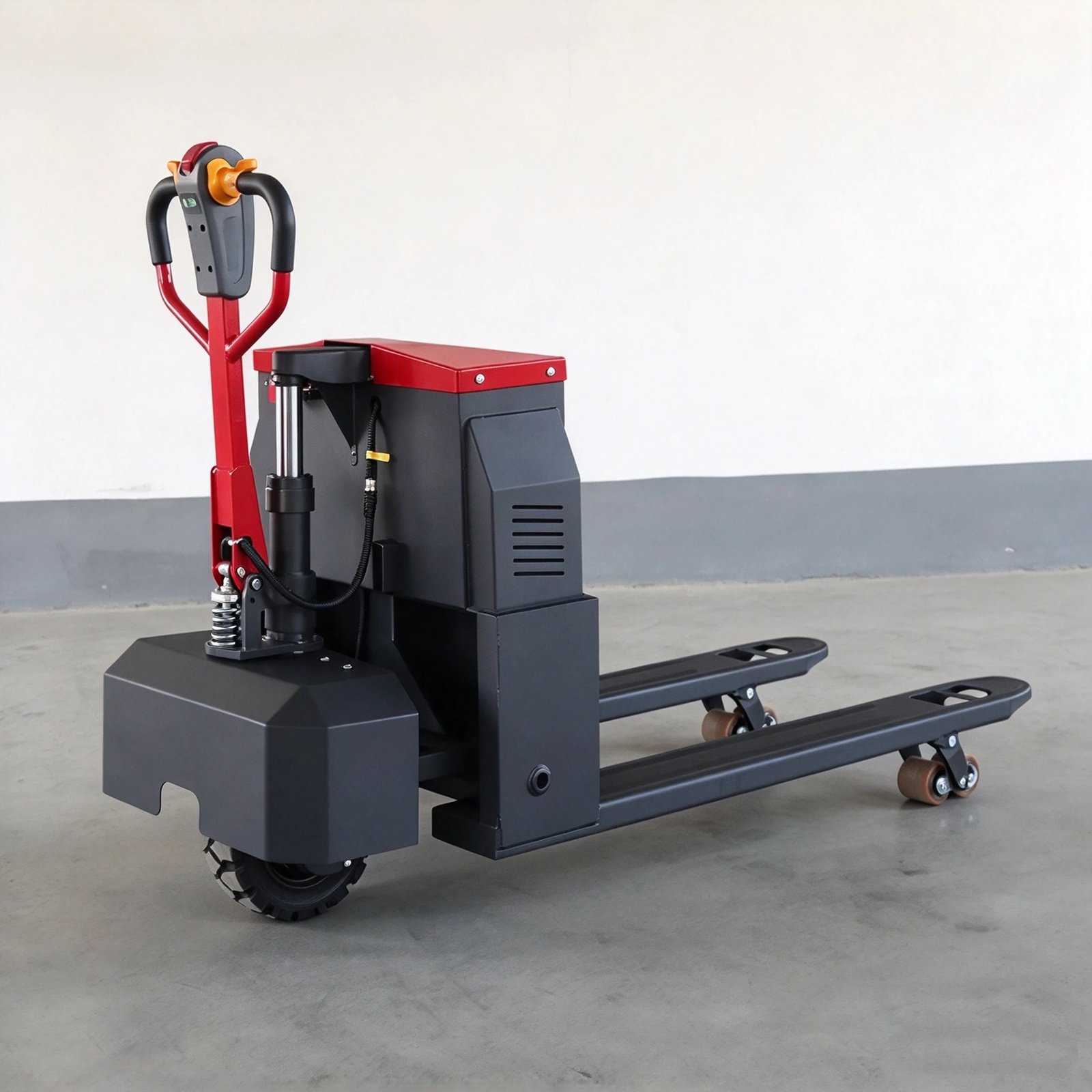

CBD 3 Ton All-Terrain Electric Pallet Truck

The all-terrain CBD 3 ton pallet truck is upgraded for mixed indoor and outdoor working conditions. It retains the same 3000kg rated load capacity and 200mm fork lifting height, but comes with reinforced chassis and heavy-duty large wheels to navigate uneven ground, gravel, ramps and rough yard surfaces that standard pallet trucks cannot tackle.

It has an overall length of 1780mm and turning radius of 1350mm, maintaining good flexibility. Travel performance matches the standard model: 4.8km/h empty load and 5.2km/h loaded speed. Powered by a customizable 72V 20Ah battery pack, it delivers stronger power output for outdoor heavy-duty tasks. The self-weight is 210kg, the robust structure ensures stability when transporting goods on bumpy ground.

Application Scenarios

✅ Standard CBD 3Ton: Indoor warehouse, distribution center, supermarket storage, factory workshop, logistics station with smooth concrete floors. ✅ All-Terrain CBD 3Ton: Outdoor yard, construction site, farm, gravel ground, loading/unloading on ramps, mixed indoor & outdoor material transfer.

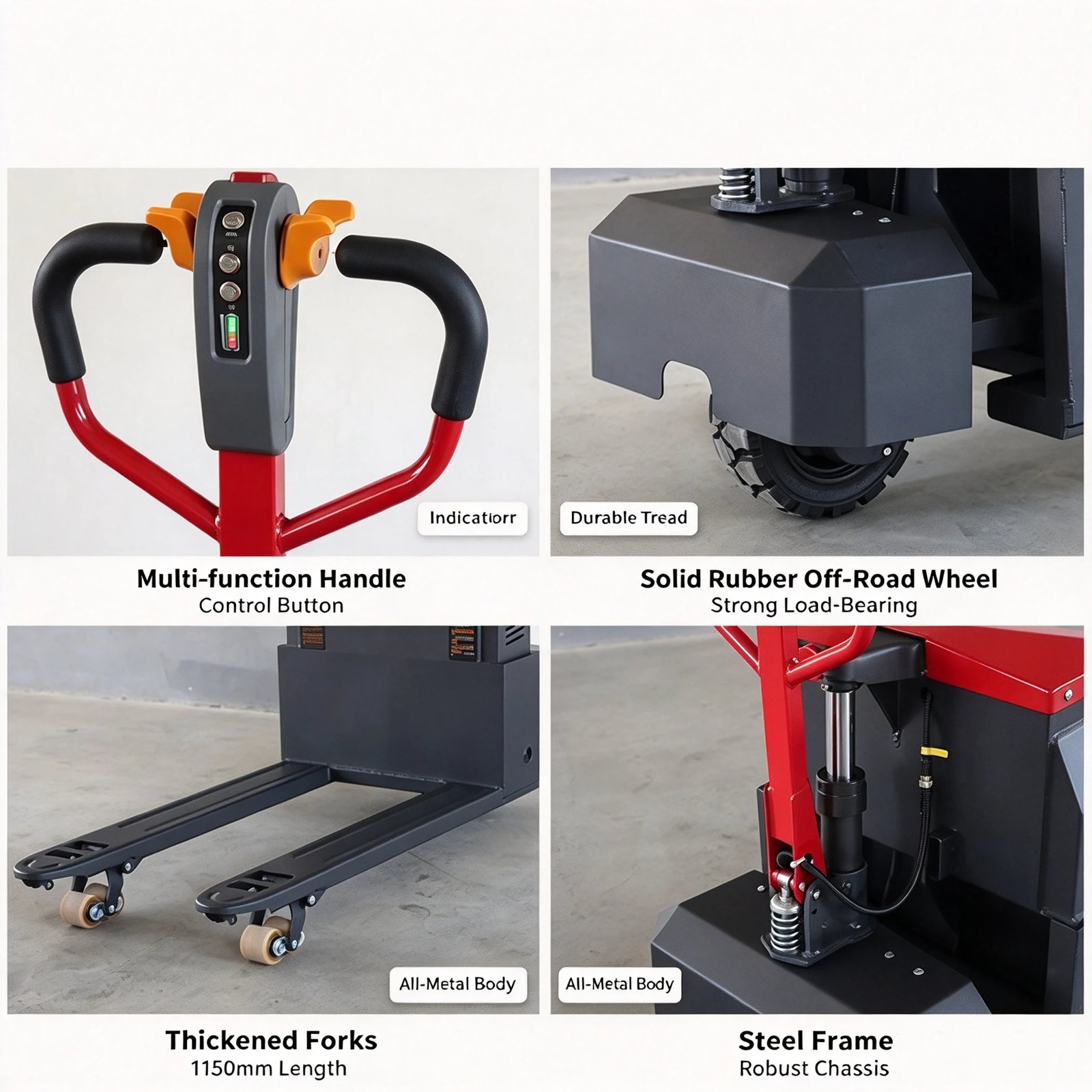

Core Features

• 3000kg heavy load capacity, stable load carrying for heavy pallets
• Ergonomic control handle, simple one-button operation, low learning cost for operators
• Low minimum lowered height, fits most global standard pallets
• Smooth travel speed, stable braking system to guarantee operation safety
• Standard model: 48V battery options for indoor daily operation; All-terrain version: customizable 72V battery for stronger power
• Compact turning radius, works well in limited space
• Solid frame construction, wear-resistant wheels, long service life and low maintenance cost

Call to Action

Choose our CBD electric pallet trucks to replace manual pallet jacks and upgrade your material handling efficiency. We support battery customization and can offer professional after-sales support. Contact us now to get your quotation and solve your heavy cargo transport challenges.

Specifications

CBD 3 Ton Electric Pallet Truck (Standard) Rated Load Capacity: 3000kg Fork Lifting Height: 200mm Overall Length: 1760mm Fork Length: 1220mm Fork Width:160mm Travel Speed: Empty Load 4.8km/h, Loaded 5.2km/h Turning Radius:1350mm Minimum Lowered Height:85mm Self-weight:169kg (subject to actual product) Battery: 48V/20Ah, 32Ah

CBD 3 Ton All-Terrain Electric Pallet Truck Rated Load Capacity: 3000kg Fork Lifting Height: 200mm Overall Length:1780mm Fork Length:1190mm Travel Speed: Empty Load 4.8km/h, Loaded 5.2km/h Turning Radius:1350mm Minimum Lowered Height:85mm Self-weight:210kg (subject to actual product) Battery:72V /20Ah (Customizable)
